Casting bucket teeth
Daewoo Dh280 Excavator bucket teeth

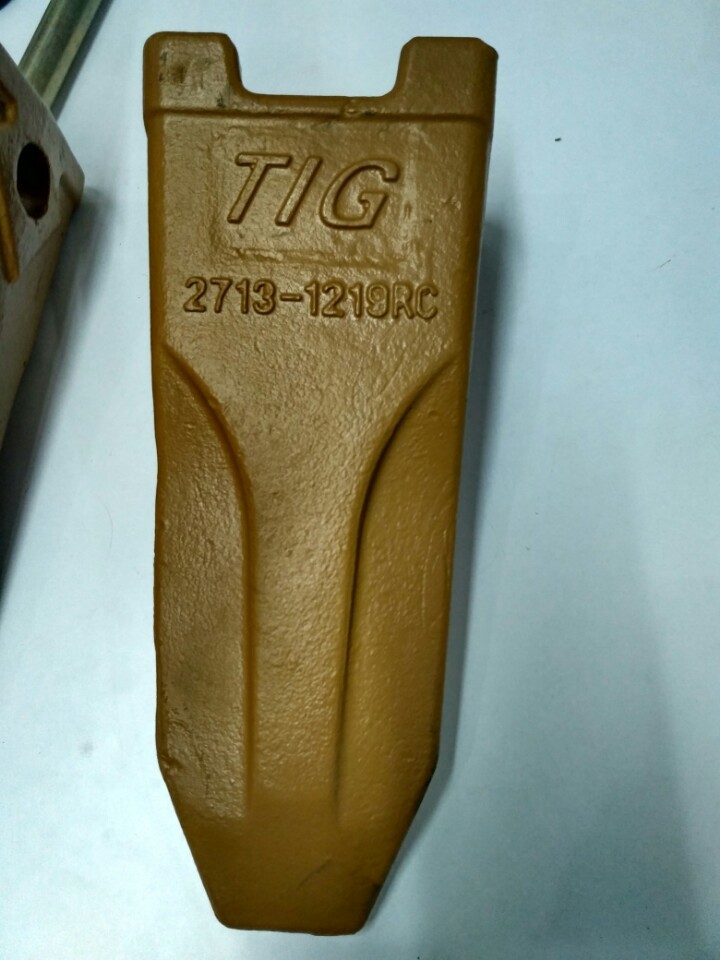

Rock Tooth
2713-1219RC 7.5kgs
Daewoo bucket teeth details
| P/N | TYPE | U/W KG | Model |
| 18S | TOP PINNED TOOTH | 1 | DH55 |
| S55-18-1 | 1.2 | DH55 |
| S55-TT | STANDARD TOOTH | 1.5 | DH55 |
| S130 | 3.5 | DH130 |
| 2713-9041 | 6 | DH220 |
| 2713-1217 | 6 | DH220 |
| 2713-1217-1 | 5.2 | DH220 |
| 2713Y1219 713-00027 | 7.3 | DH280 |
| 713-00032 | 9.6 | DH360 |
| 2713-1236 713-00029 | 17.2 | DH420 |
| S130RC | ROCK CHISEL TOOTH | 3.5 | DH130 |
| 2713-1217RC | 5.3 | DH220 |
| 2713-9041RC | | DH220 |
| 2713Y1219RC | 7 | DH280 |
| 713-00032RC | 9 | DH360 |
| 2713-1217SK | SK TYPE TOOTH | 6 | DH220 |
| 2713-1219SK | 7.7 | DH280 |
| 713-00032TL | TIGER TOOTH | 9 | DH360 |
| DH500TL | 15 | DH420 DH500 |
| 18SA(20mm) | TOP PINNED ADAPTER | 1.5 | DH55 |
| 18Z | ADAPTER | 2 | DH55 |
| 2713-1222 (30mm) | ADAPTER | 6 | DH130 |
| DH220 (40mm) (OLD) | 9 | DH220 |
| 2713-1218 (35mm) | 9 | DH220 |
| 2713-1218 (40mm) | 8.6 | DH220 |
| 2713-1220 3T1220 (40mm) | 11.5 | DH280 |
| 2713-1220 3T1220(45mm) | 11 | DH280 |
| 713-00033 (50mm) | 17.5 | DH360 |
| 713-00033 (55mm) | 17 | DH360 |
| 2713-1273 (50mm) | 25 | DH420 |

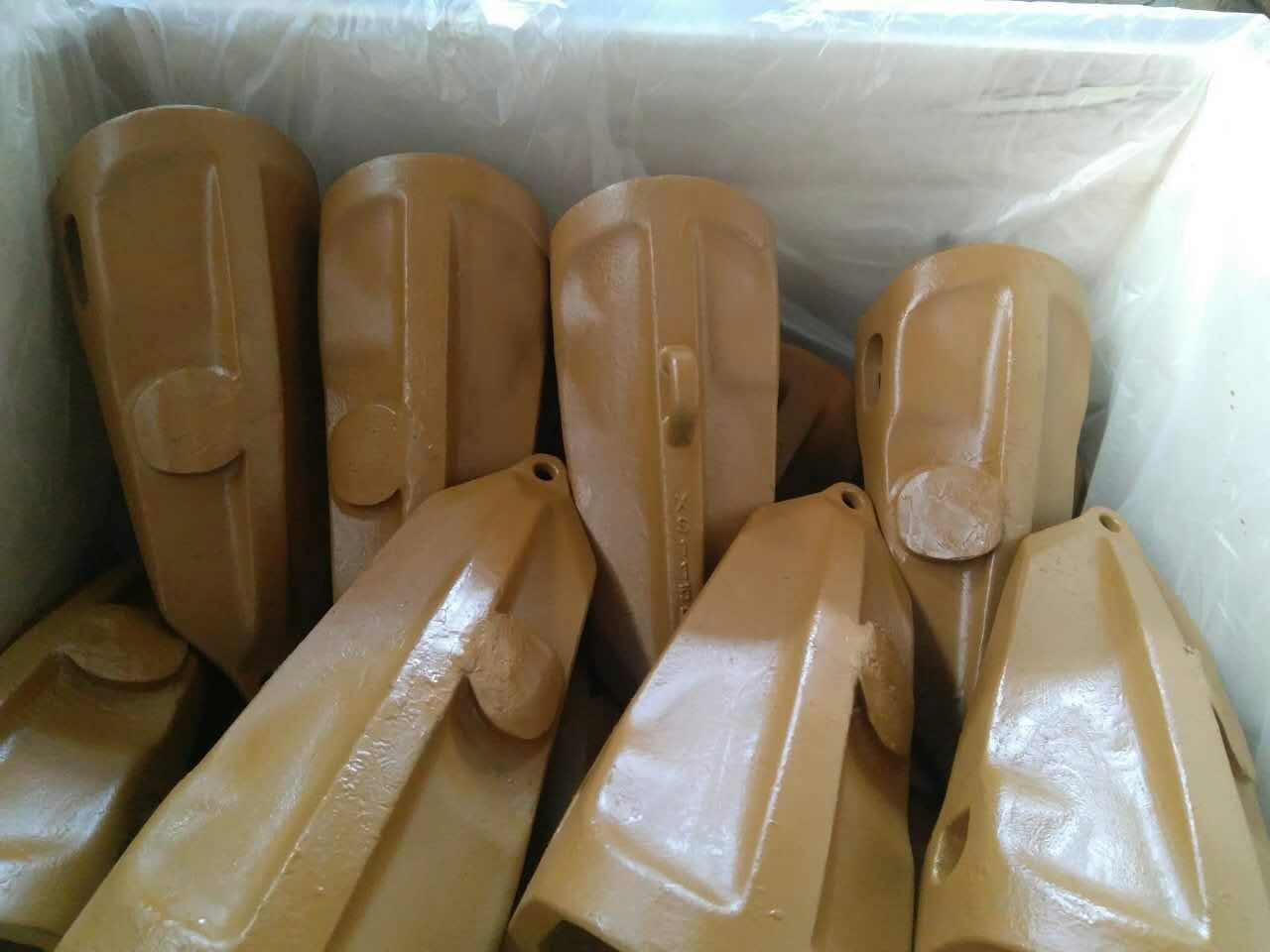

package details
standard wooden case 1050*710*840mm
·A comprehensive range is available to suit:
Komatsu , Daewoo , ,Hensley,Hitachi, H & L,Hyundai,· Volvo
· JCB.· Bofors· · Case· Kobelco· Liebherr
· Bob
Casting is a manufacturing process by which a liquid material is usually poured into a mold, which contains a hollow cavity of the desired shape, and then allowed to solidify. The solidified part is also known as a casting, which is ejected or broken out of the mold to complete the process. We use the precision casting /lost wax casting to product our bucket teeth
Casting Bucket Teeth
Material 1# Hardness :48-52HRC Impact Value :>15J
Material 2# Hardness :48-52HRC Impact Value :>20J
